NOTE: Before proceeding, ensure the requirements outlined in the article "External Trigger Details" are met.

  1. Ensure the Allegro Trigger Cable is securely plugged in.

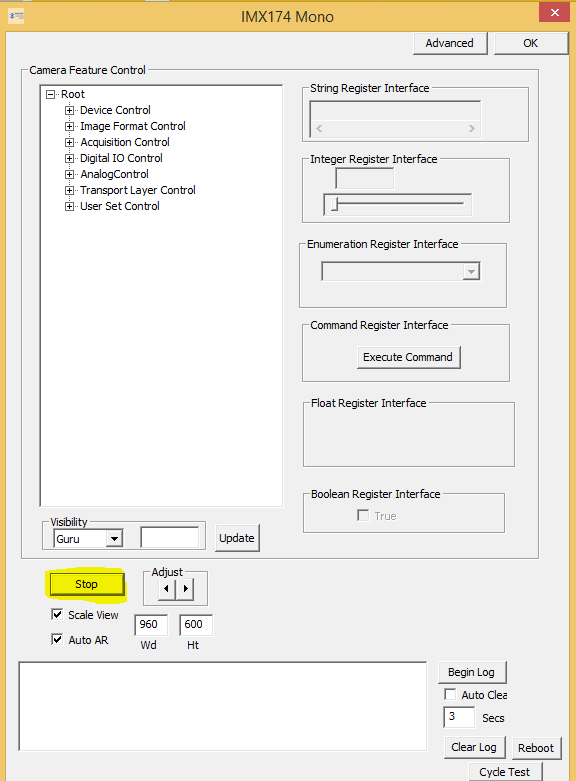

  2. Click Stop in the IsgU3VGUI.
  3. Change Aquisition Mode to Single Frame.

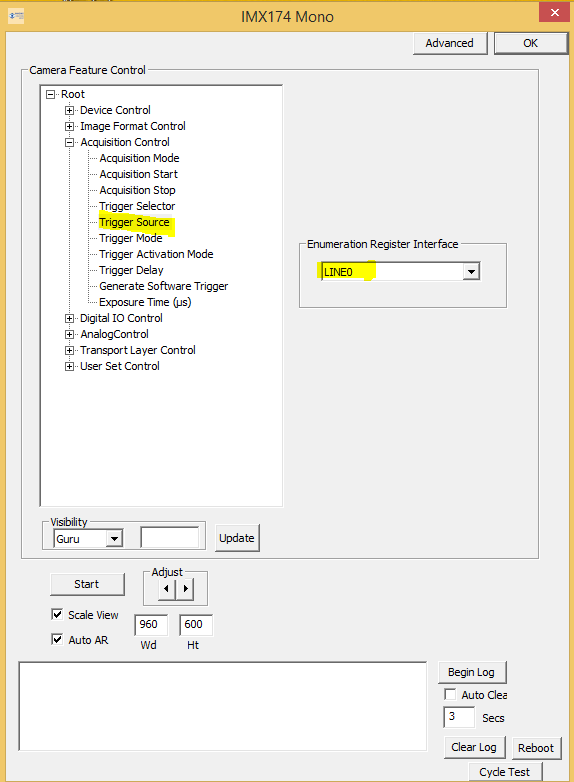

  4. Change Trigger Source  to Line0.

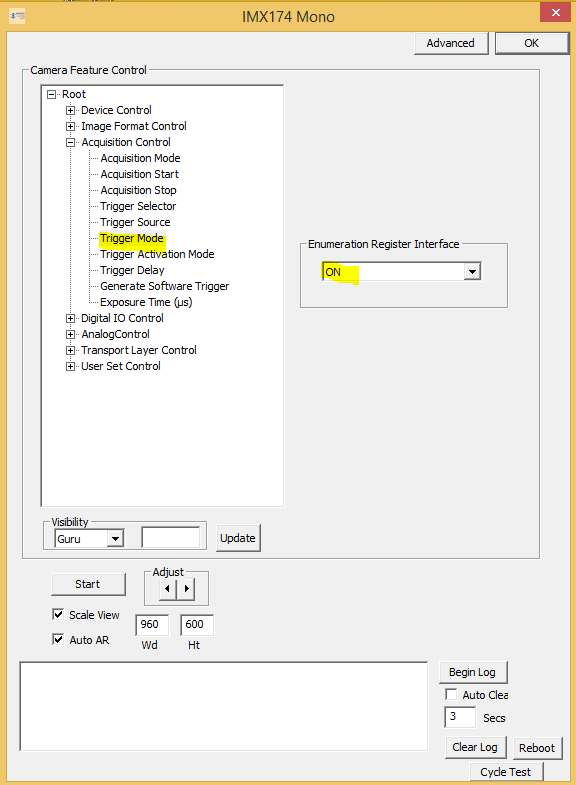

  5. Change Trigger Mode to ON.

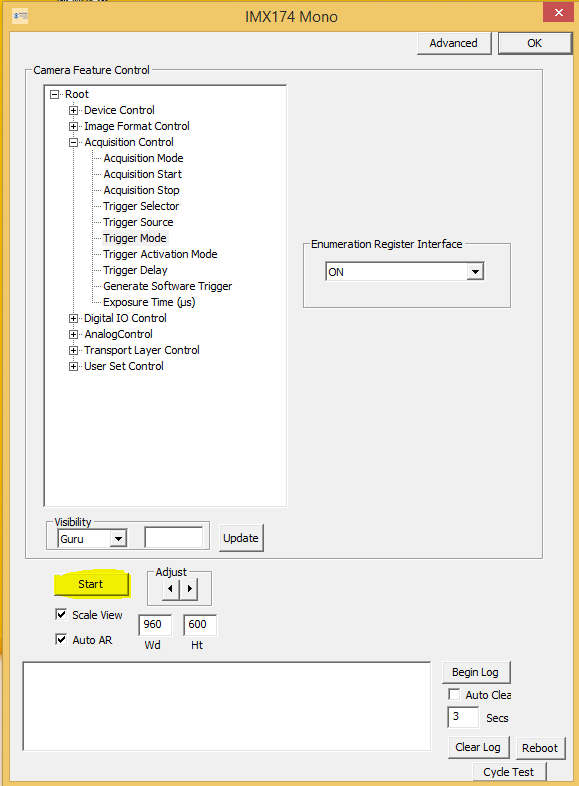

  6. Click Start to begin triggering frames.



STOP


Acquisition Mode SingleFrame
