In order to view raw images you will need to use an image analysis software program such as ImageJ.

To view a raw image using ImageJ:

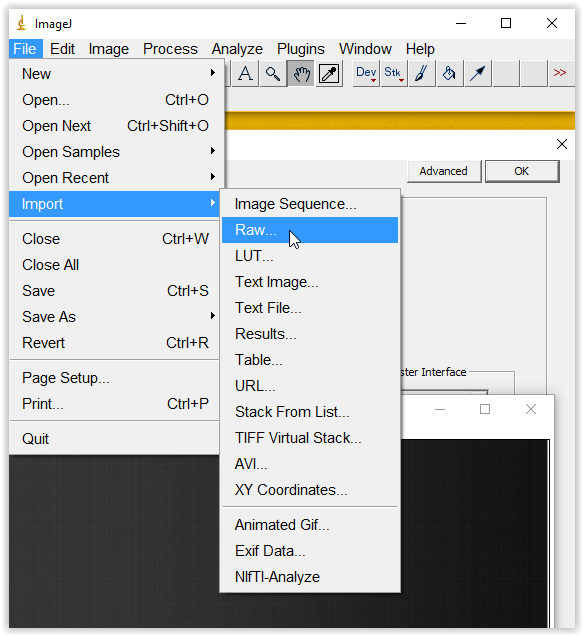

1. Select File > Import > Raw and then browse for the image file you want to view (Fig.1)
2. Select the image file you want to view and click Open (Fig.2)

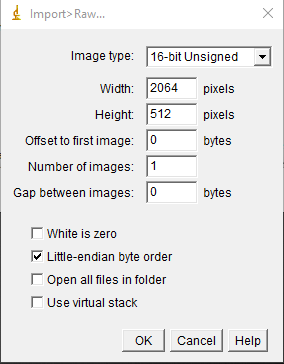

3. Set the Image type to 16-bit Unsigned (Fig.3)
4. Set the Width and Height according to the saved images dimensions.
5. Set Offset to first image to 0
6. Set Number of images to 1
7. Set Gap between images to 0
8. Place a check mark in Little-endian byte order
9. Click OK
